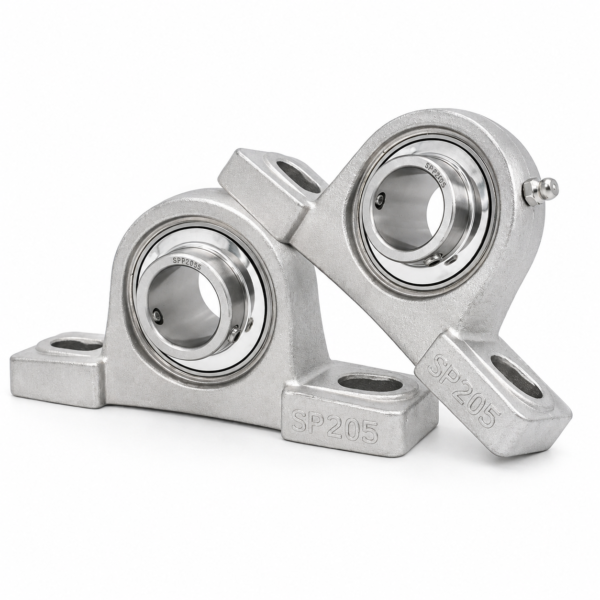

SP206 stainless steel pillow block bearing

Stainless Steel Pillow Block Bearing — SP206 / SUC206

A drop-in mounted bearing unit built from full stainless steel — housing, insert, and dust cover — for equipment that has to keep running through washdowns, humidity, and heat. Where standard cast-iron pillow blocks corrode and standard chrome-steel inserts pit and seize, this SUC206 setup keeps rotating quietly for years of service.

The SP206 housing is the industry-standard two-bolt pillow block form factor, so it drops straight into existing UCP206 mounting patterns without redesigning the frame. The SUC206 insert carries a 30mm bore and self-aligns to compensate for minor shaft misalignment during installation.

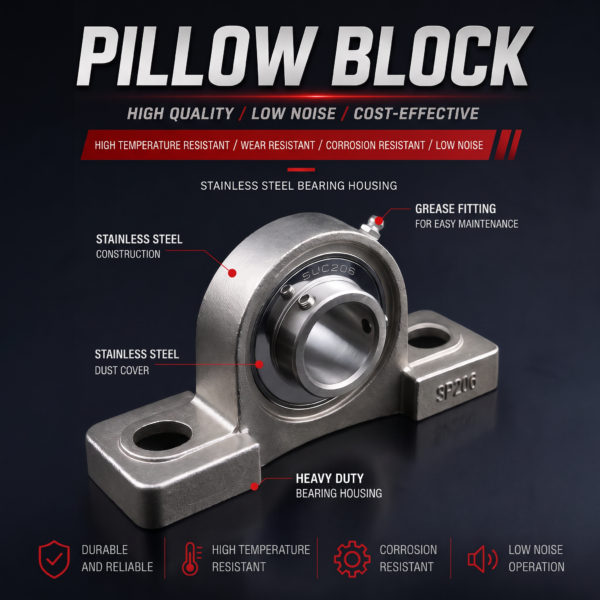

Key features

Full stainless steel construction — housing, bearing insert, and dust cover all stainless for total corrosion resistance
Grease fitting on top — accepts a standard grease gun for scheduled re-lubrication, no disassembly required
Sealed stainless dust cover — keeps water, dust, and washdown chemicals out of the bearing race
Self-aligning insert — absorbs shaft misalignment up to a few degrees without preloading the balls
Two-bolt base — pre-drilled mounting holes for fast bolt-on installation to any flat frame
Low-noise operation — precision-ground raceways run smoothly at operating speed
High-temperature rated — stainless retains hardness where zinc-plated units soften

Specifications

Housing model: SP206
Bearing insert: SUC206
Bore diameter: 30mm
Housing type: Two-bolt pillow block
Material: Stainless steel (housing, insert, dust cover)
Lubrication: Grease fitting, re-lubricatable
Alignment: Self-aligning

Ideal for

Food and beverage processing lines, dairy and meat plants, marine and dockside equipment, outdoor conveyors, water treatment plants, pharmaceutical machinery, agricultural equipment, and any application involving washdown, humidity, salt air, or corrosive chemicals.

What’s in the box

1 × SP206 pillow block housing with SUC206 stainless bearing insert (pre-assembled)
