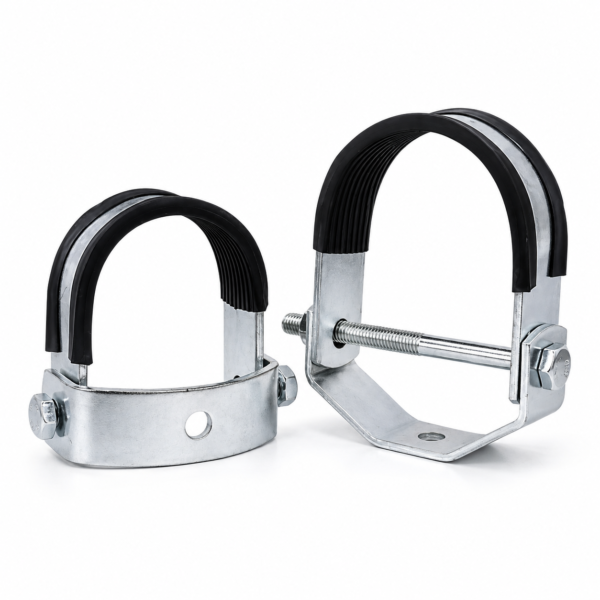

Rubber-lined clevis hanger

Rubber-Lined Clevis Hanger — Pipe Support with Vibration Isolation

A working pipe hanger built for real installations, not spec-sheet minimums. The strap wraps around your pipe with an EPDM rubber liner that cushions the contact, dampens vibration, and eliminates the metallic ticking that plain steel hangers transfer through a building whenever a pump kicks on or fluid flows through the line.

The galvanized steel construction resists corrosion for indoor and semi-exposed installations, and the threaded rod adjustment lets you dial in exact pipe height on-site — critical when you’re running long horizontal drops and need consistent slope for drainage or venting.

Key features

EPDM rubber liner — cushions the pipe, isolates vibration, prevents galvanic corrosion between dissimilar metals
Galvanized steel strap — corrosion-resistant zinc coating for indoor and light outdoor use
Threaded rod with adjustment nut — precise height alignment during installation
Deep-drawn construction — one-piece formed strap, no weak weld points
Load-tested design — engineered for the sustained static loads of long pipe runs
Bolt-through base tab — accepts standard threaded rod or eye bolt for overhead mounting

Ideal for

HVAC chilled water and refrigerant lines, plumbing supply and drain pipes, fire sprinkler systems, compressed air lines, industrial process piping, and any overhead pipe suspension where vibration transfer, noise, or point loading is a concern.

Specifications

Material: Galvanized steel with EPDM rubber liner
Adjustment: Threaded rod with hex nut
Mounting: Bolt-through tab for overhead threaded rod (rod sold separately)
Finish: Hot-dip or electro-galvanized zinc

What’s in the box

1 × Rubber-lined clevis hanger with adjustment nut assembly
